Three-channel Function Arbitrary Waveform Signal Generator
Feature:
1. Completely independent 3-channel output (equivalent to three independent signal sources), capable of working synchronously, with precisely adjustable phase difference
2. Adopt DDS direct digital synthesis technology to produce accurate, stable and low distortion output signal
3. Desktop design with ABS plastic casing, powered by AC 100-240V wide voltage power supply
4. Using 2.4-inch (320 x 240) color display, with stable performance
5. Unique operating interface design, which can display 3-channel output state at the same time
6. Press and hold the OK key during use, you can quickly save the parameter information currently output by the instrument, and the saved parameters can be automatically loaded at the next boot.
7. Standard channel tracking function, when the tracking is on, all parameters of the 3 channels can be updated at the same time according to the user's configuration
8. With 64 groups of arbitrary waveform storage bits, each group has a storage depth of 8192 x 14bits (the longer the waveform storage depth, the more waveform details are saved, and the signal details can be restored with high accuracy)
9. With digital signal output function, can realize any CMOS level with amplitude of 0-12V
10. All parameters can be calibrated by internal procedures
11. Equipped with powerful arbitrary waveform editing function as standard, it can be downloaded to the instrument output waveform after editing arbitrary waveform on PC
12. Powerful communication function, which can be controlled by PC
13. Large-scale integrated circuits, surface mount technology, high reliability and long service life
14. Output short circuit protection, all signal output terminals can work more than 60S under load short circuit
Specification:
Item Type: Signal Generator
Optional Style: FY8300-30M
Maximum Output Frequency: 10MHz (sine wave)
Sampling Rate: 250MSa/s
Vertical Resolution: 14bits
Frequency Accuracy: 10-6 orders of magnitude
Full Range Frequency Resolution: 1uHz (0.000001Hz)
Output Amplitude: Maximal, 24Vpp
Amplitude Resolution: Minimum, 1mV (0.001V)
With -12V ~ + 12V DC bias function (<20MHz), resolution can reach 1mV
Packing list:
Signal generator *1
Power cord*1
Q9 clip cable*3
BNC-BNC line*3
USB cable*1

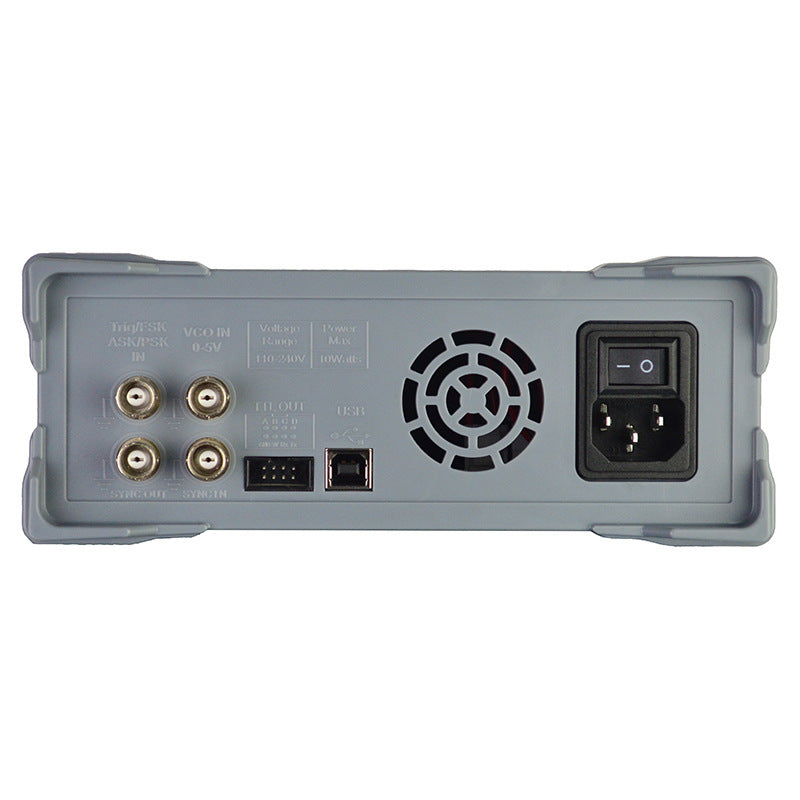

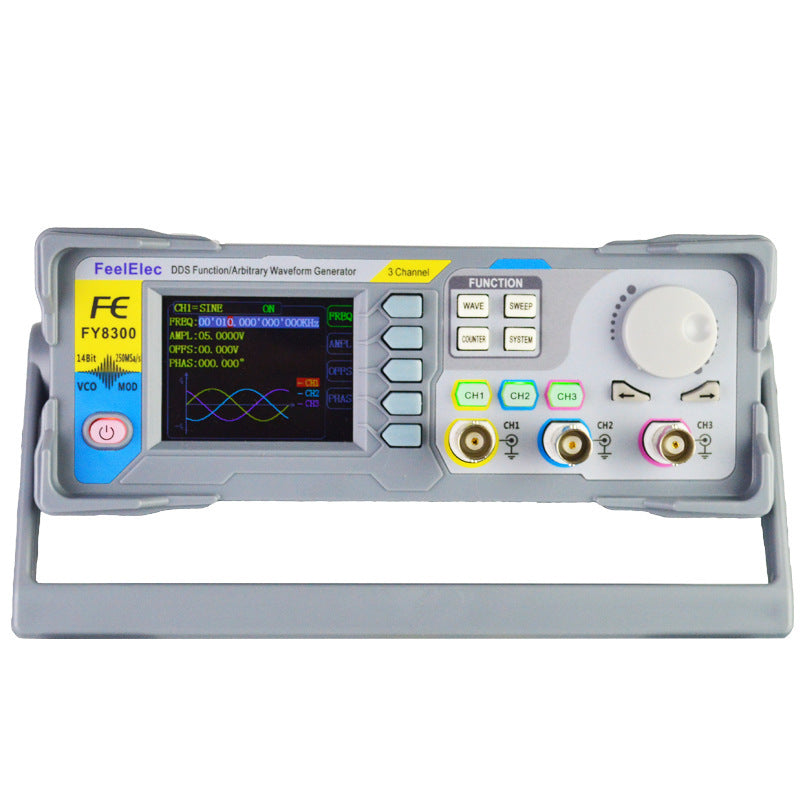

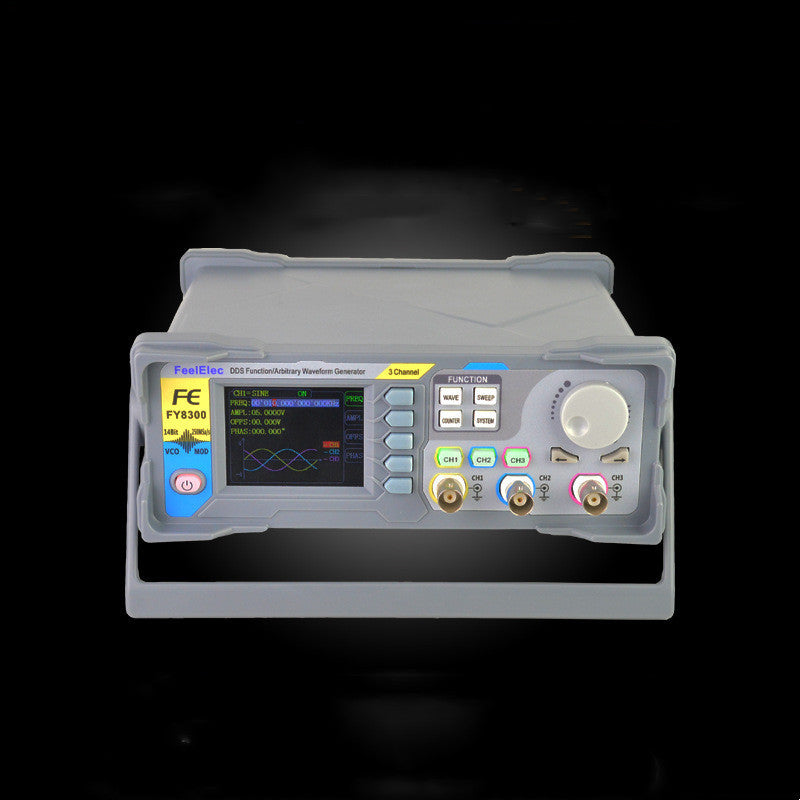

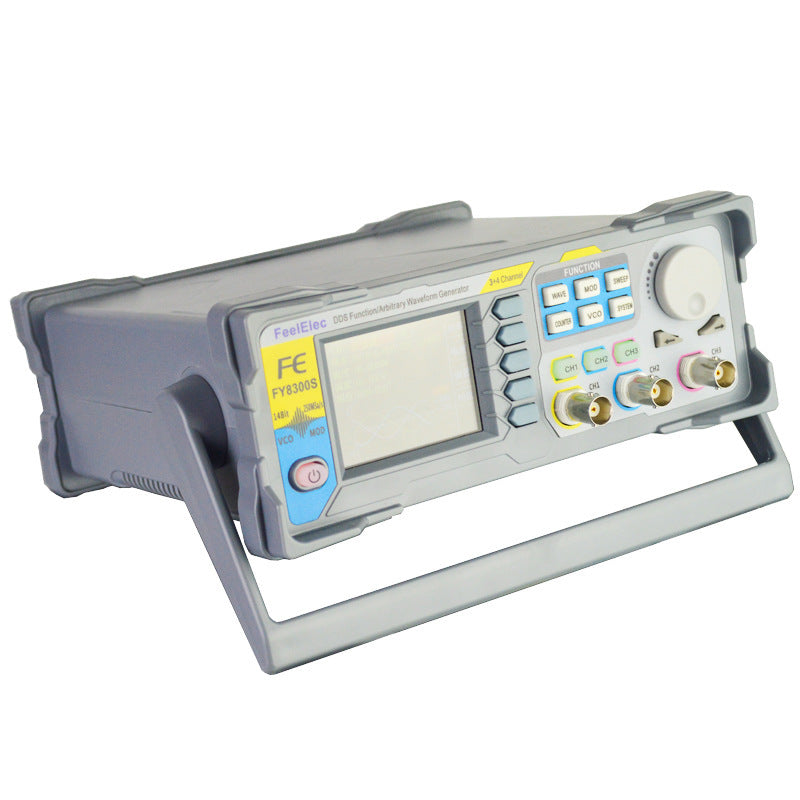

Product Image:
